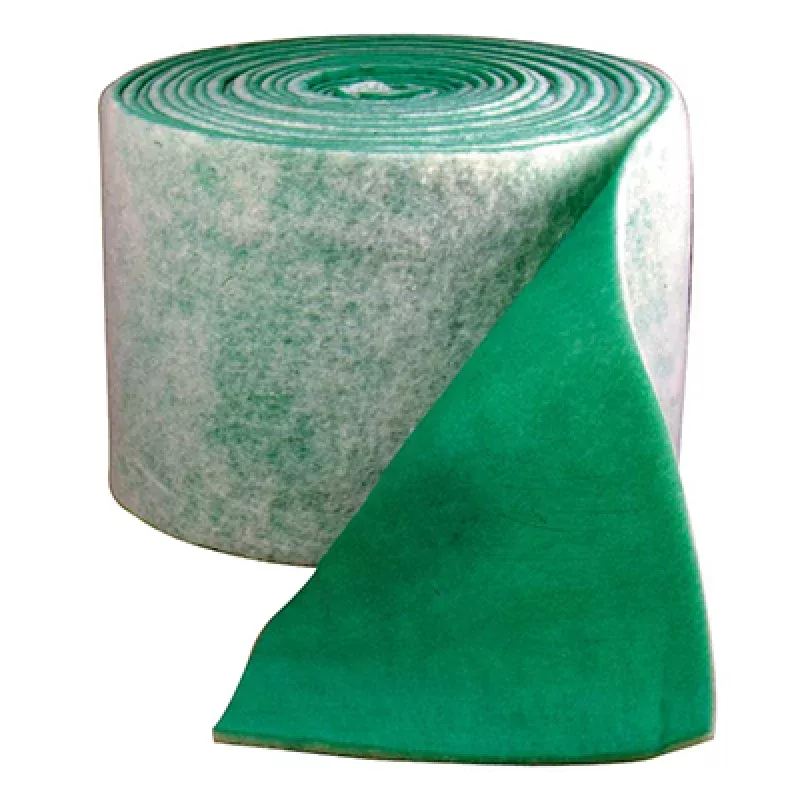

The Koch SprayStop S Paint Arrestor Bulk Roll is a multi-denier synthetic polyester bulk roll engineered for the exhaust plenum of paint spray booths a general-use paint arrestor for lacquers, air-dry enamels, and thermo-reactive coatings. Per Koch product literature, SprayStop S exceeds NESHAP regulations and MACT standards, and is composed of multi-denier polyester fibers in a progressively dense configuration with coarse fibers on the air-entering side and finer fibers on the air-exiting side. The full-depth-loading design allows paint solids to permeate the media from back to front, maximizing service life without multiple layers.
What you get: one bulk roll, cut to size on your end
Each variant is one single bulk roll, 90 ft long. The variant price is the per-roll price. Available widths for SprayStop S bulk rolls:
- 25 x 90 ft ~187.5 sq ft of media per roll
- 36 x 90 ft ~270.0 sq ft of media per roll
- 45 x 90 ft ~337.5 sq ft of media per roll
- 48 x 90 ft ~360.0 sq ft of media per roll
- 55 x 90 ft (412.5 sq ft) available by quote. Request a quote for current pricing.
- 65 x 90 ft ~487.5 sq ft of media per roll
- 72 x 90 ft ~540.0 sq ft of media per roll
- 84 x 90 ft ~630.0 sq ft of media per roll
- 120 x 90 ft ~900.0 sq ft of media per roll
Cut the roll to fit your booth’s exhaust frame dimensions on-site. Polyester media trims cleanly with a sharp utility knife.
SprayStop S construction and specifications
- Capacity tier: Standard Capacity (S)
- Form factor: Bulk Roll
- Media: 100% multi-denier polyester synthetic fibers, progressively dense configuration
- Construction: Coarse fibers air-entering side, finer fibers air-exiting side full depth loading from back to front
- Binders: Acrylic no halogens
- Air velocity rating: 150 FPM
- Paint-holding capacity: Per Koch PB 798-1: 1,478g paint-holding capacity on high solids
- Removal efficiency: Per Koch PB 798-1: 99.52% removal efficiency
- Compliance: Per Koch product literature, exceeds NESHAP regulations and MACT standards. Documentation available on request through RTF.
- Captures: Lacquers, air-dry enamels, thermo-reactive coatings, high-solids paints
Sizing and ordering notes
- Each variant is one single bulk roll. Order multiple rolls by adjusting the quantity at checkout.
- Available widths cover most booth filter bank dimensions. For non-standard widths or custom-cut orders, request a quote.
- Heavier widths ship as freight. 65 and larger widths are oversized and ship LTL freight.
- Disposal: Per Koch product literature, SprayStop media uses acrylic binders with no halogens. Follow your local hazardous waste regulations for paint-saturated arrestors.
Koch product literature
Detailed product specifications and test data for SprayStop S are published in Koch PB 798-1, available through Koch Filter Corporation (kochfilter.com) or by request through RTF.
