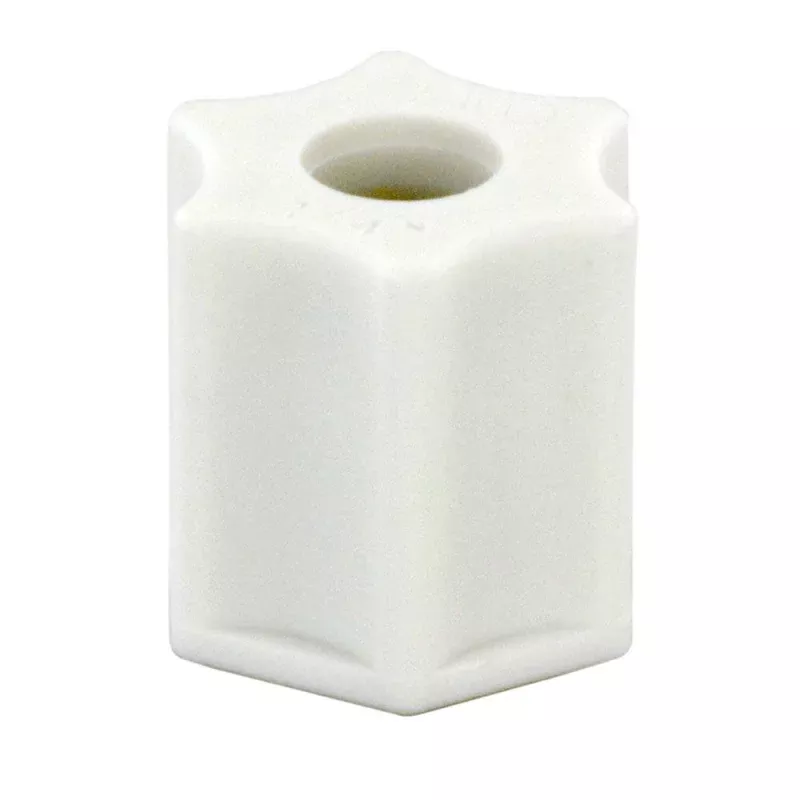

JACO K-PG-4 Kynar fittings have high chemical resistance and have the ability to handle highly corrosive fluids. Kynar is a specialized grade of polyvinylidene fluoride (PVDF), which is chemically resistant against strong inorganic and organic acids. They are also NSF listed.
Specifications:
- Connections: 1/4″ OD tube
- Fitting Material: Kynar
- For use with plastic tubing
- Max Pressure: 220 psi
- Temperature Range: -80 – 275 F
Advantages of JACO fittings over metal compression fittings:
- Good electrical insulating qualities. This eliminates the electrolytic action that corrodes tubing, caused by a dissimilar metal meeting a fitting.
- Low density and softness of plastic gives JACO fittings the ability to absorb mechanical and acoustical vibrations.
- Low resistance to flow due to the smooth internal surface of the fittings.
- Resistance to scale buildup.
| JACO Part Number |
Tube Size (O.D.) |
A | B | C | D |
| K-PG-4 | 1/4″ | 5/8″ | 43/64″ | 7/16-20″ | 0.250″ |
